In order to test the streaming capability, I've used a small portion (about 600 seconds) of the movie Home
realised by Yann Arthus Bertrand in 2009, copyright Europa Corp, publicly viewable on many web sites.
I've added a specific page with all the disclaimer
The video here embedded is heavy compressed and has two further level of information reduction: the interlacing (half image every 1/50 of second instead of progressive
and the usage of half horizontal resolution. In the mid 90ies, when the computational power of real time encoders was not sufficient for an acceptable quality at very low bitrate
(at the time a PAL video required mean 6-8 Mbps). We used to call half-D1 this reduced horizontal resolution PAL encodings,
with a Pixel Aspect Ratio of 2:3 (the horizontal double of the PAR standard 4:3) in order to obtain the Display Aspect Ratio of 16:9 despite the number of horizontal pixel have been halved.
The embedded stream can be directly loaded by VLC as http://www.iginomanfre.it/rh_mp4_hD1_750 .interlaced with 92 Kbps AAC-LC stereo 48KHz audio compressed with Rhozet Carbon Coderin this other page (rh_mp4_hD1_750_TS.html) the same mp4 MBFF file is stream with the VLC TS (DVB) engine.
This is a live streaming, not based on a slice downloaded material (such as Dinamic streaming ones are).
The following is the mediainfo analysis of the file stream
General
Complete name : C:\video\Home 10' hD1 16.9 an._h264_25i_750kbps.mp4
Format : MPEG-4
Format profile : Base Media / Version 2
Codec ID : mp42
File size : 62.4 MiB
Duration : 9mn 59s
Overall bit rate mode : Variable
Overall bit rate : 873 Kbps
Encoded date : UTC 2014-05-03 20:19:58
Tagged date : UTC 2014-05-03 20:19:58
Video
ID : 1
Format : AVC
Format/Info : Advanced Video Codec
Format profile : High@L3.1
Format settings, CABAC : Yes
Format settings, ReFrames : 3 frames
Format settings, GOP : M=4, N=100
Codec ID : avc1
Codec ID/Info : Advanced Video Coding
Duration : 9mn 59s
Bit rate mode : Constant
Bit rate : 750 Kbps
Width : 360 pixels
Height : 576 pixels
Display aspect ratio : 16:9
Frame rate mode : Constant
Frame rate : 50.000 fps
Original frame rate : 25.000 fps
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Scan type : Interlaced
Scan order : Top Field First
Bits/(Pixel*Frame) : 0.072
Stream size : 55.4 MiB (89%)
Language : English
Encoded date : UTC 2014-05-03 20:19:58
Tagged date : UTC 2014-05-03 20:19:58
Audio
ID : 2
Format : AAC
Format/Info : Advanced Audio Codec
Format profile : LC
Codec ID : 40
Duration : 9mn 59s
Bit rate mode : Variable
Bit rate : 93.5 Kbps
Maximum bit rate : 177 Kbps
Channel(s) : 2 channels
Channel positions : Front: L R
Sampling rate : 48.0 KHz
Compression mode : Lossy
Stream size : 6.68 MiB (11%)
Language : English
Encoded date : UTC 2014-05-03 20:19:58
Tagged date : UTC 2014-05-03 20:19:58

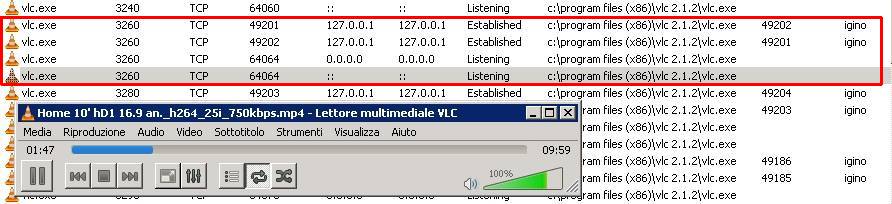

VLC does not stream correctly mp4 through flv streamer

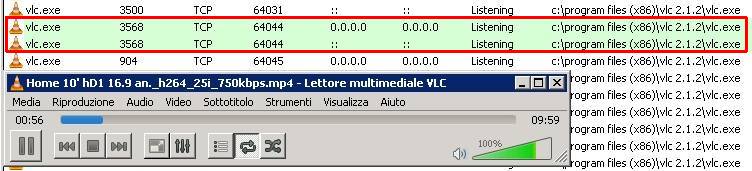

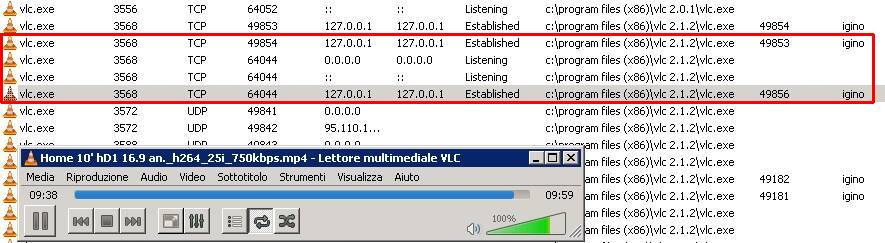

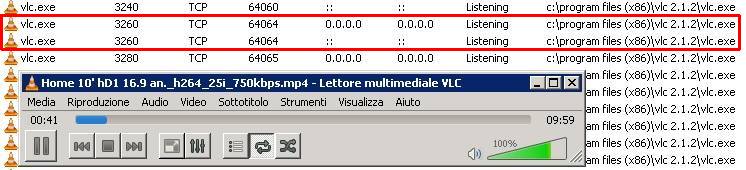

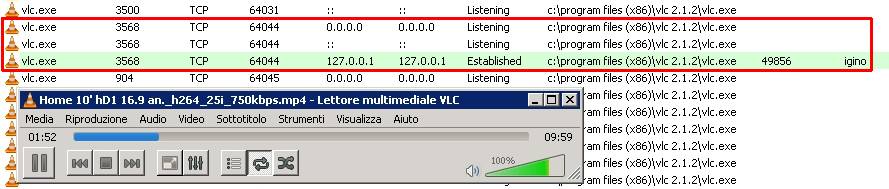

This is the call of the mp4_750
call log of VLC generated stream (http://95.110.164.61:64044/rh_mp4_hD1_750)
main debug: adding item `http://95.110.164.61:64044/rh_mp4_hD1_750' (http://95.110.164.61:64044/rh_mp4_hD1_750)
access to the proxed stream http://iginomanfre.it/rh_mp4_hD1_750
main debug: adding item `http://iginomanfre.it/rh_mp4_hD1_750' (http://iginomanfre.it/rh_mp4_hD1_750)

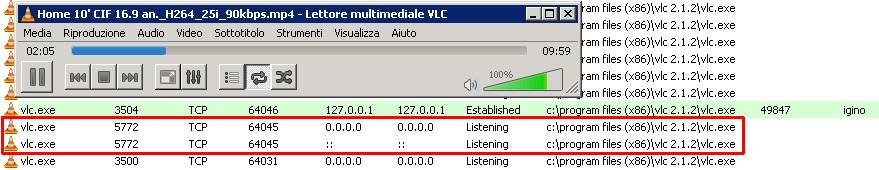

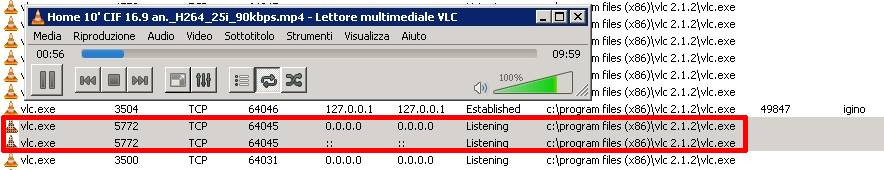

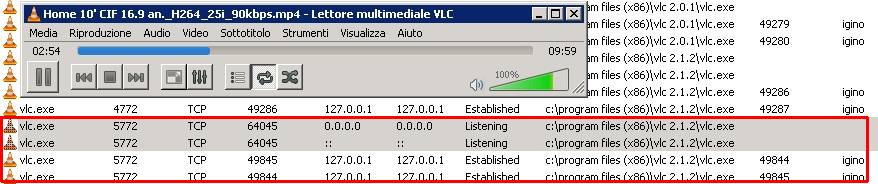

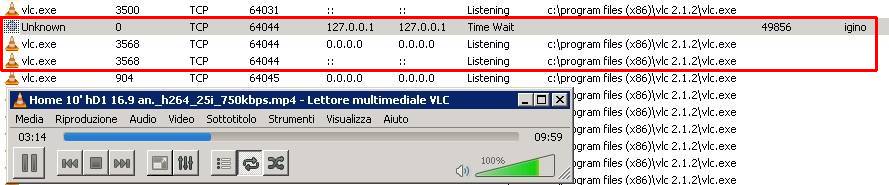

opening in loop of a h264 stream as TS (DVB)
before starting VLC

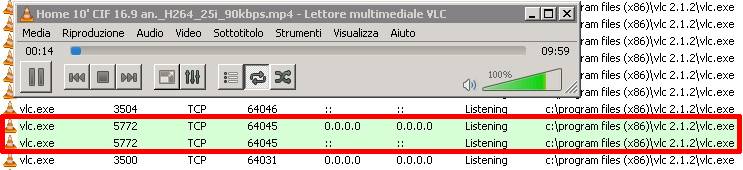

opening log in loop of an ordinary h264 stream as TS (DVB) (originally generated by VLC on port 64045)
main debug: adding item `http://iginomanfre.it/rh_mp4_CIF_90_TS' ( http://iginomanfre.it/rh_mp4_CIF_90_TS )
